Quick Details

  • Type: LED Modules
  • Model Number: RX-BKT28-50023 Flexible LED Light Sheet
  • Chip Material: InGaN
  • Emitting Color: Cool White
  • Luminous Intensity: High Intensity
  • Luminous Flux(lm): 3480Lm
  • Optical Attenuation(%): 5
  • Power: 32w
  • Power Dissipation: 0.5
  • Viewing Angle(°): 120
  • Color Rendering Index(Ra): 75
  • Color Temperature: 6000k
  • Operating Temperature(℃): -30 - 50
  • Storage Temperature(℃): -30 - 80
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Xinelam
  • Certification: CE, RoHS, CE RoHs FCC
  • Operated voltage: 0.3w/led
  • Dimension: 500x235x1mm
  • Led chips: SMD2835
  • Light efficiency: 33Lm/led
  • Weight: 50g/N.W
  • LED qty: 105
  • Waterproof rating: Non IP rating
  • Warranty: 3years
  • LED spacing: 33.33mm

Packaging & Delivery

Packaging Details 500x230mm weight 80g/pcs (N.W)
Export packing
Delivery Time 9-15days( 4-5days for sample order)

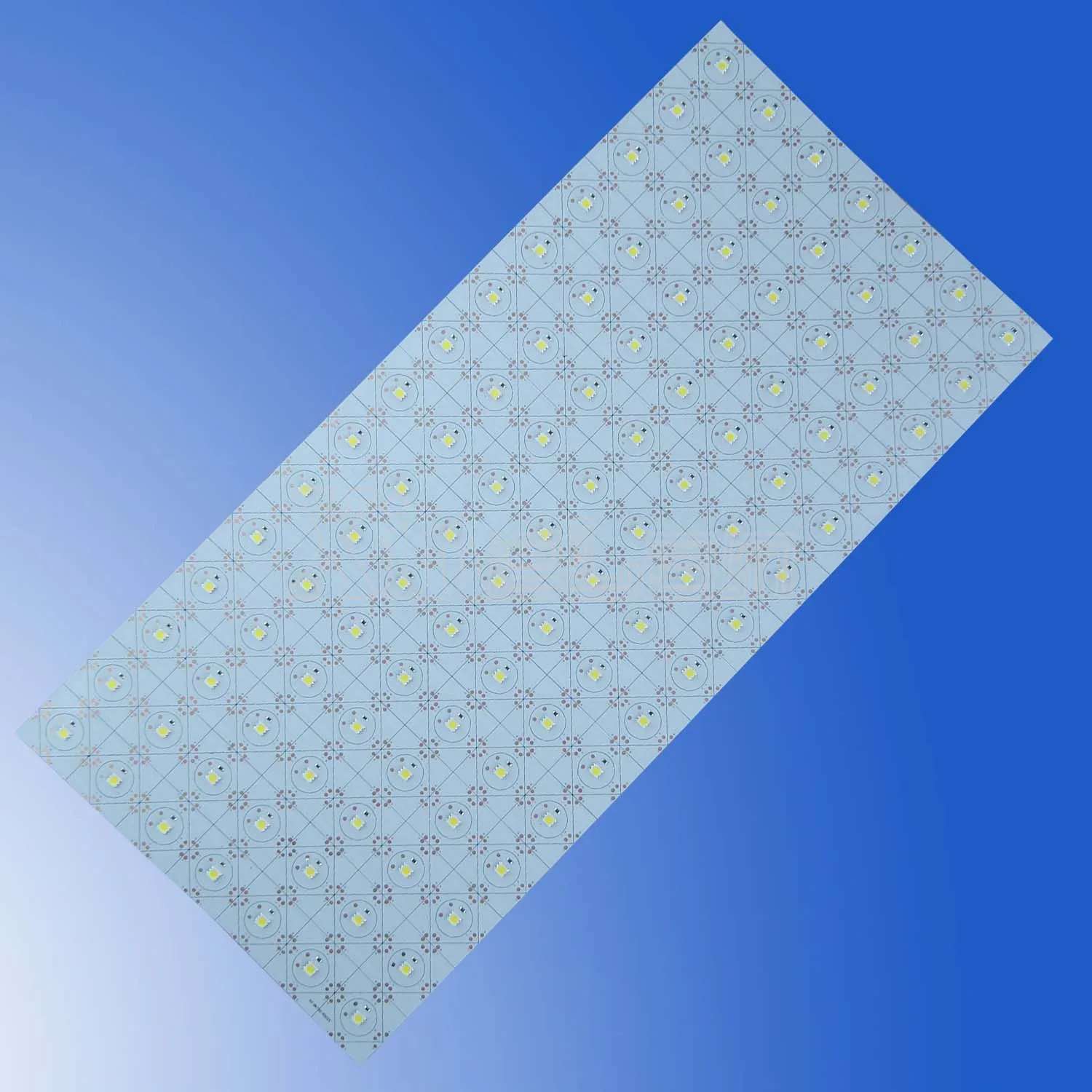

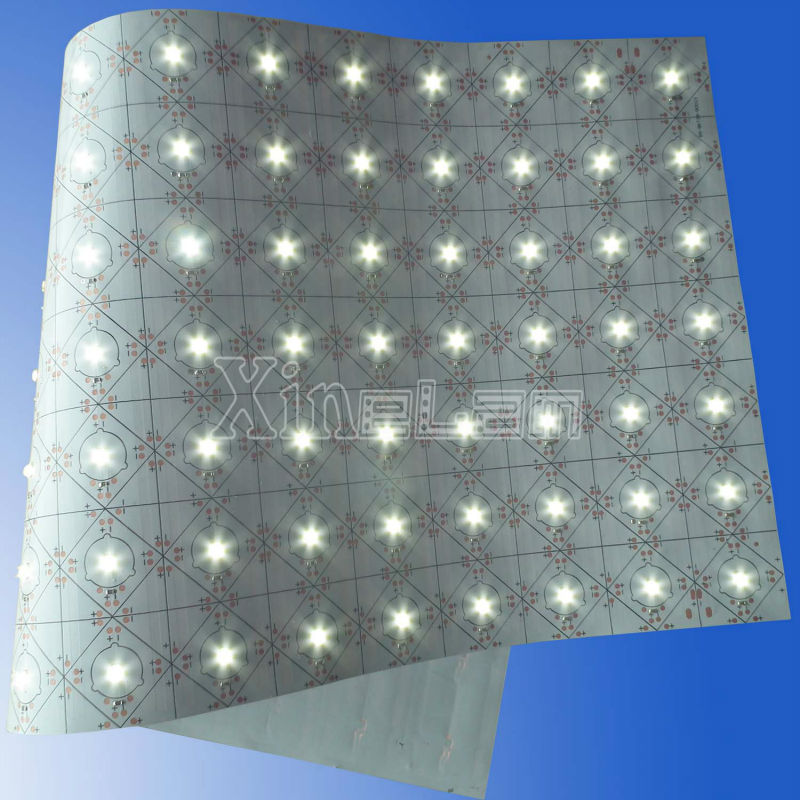

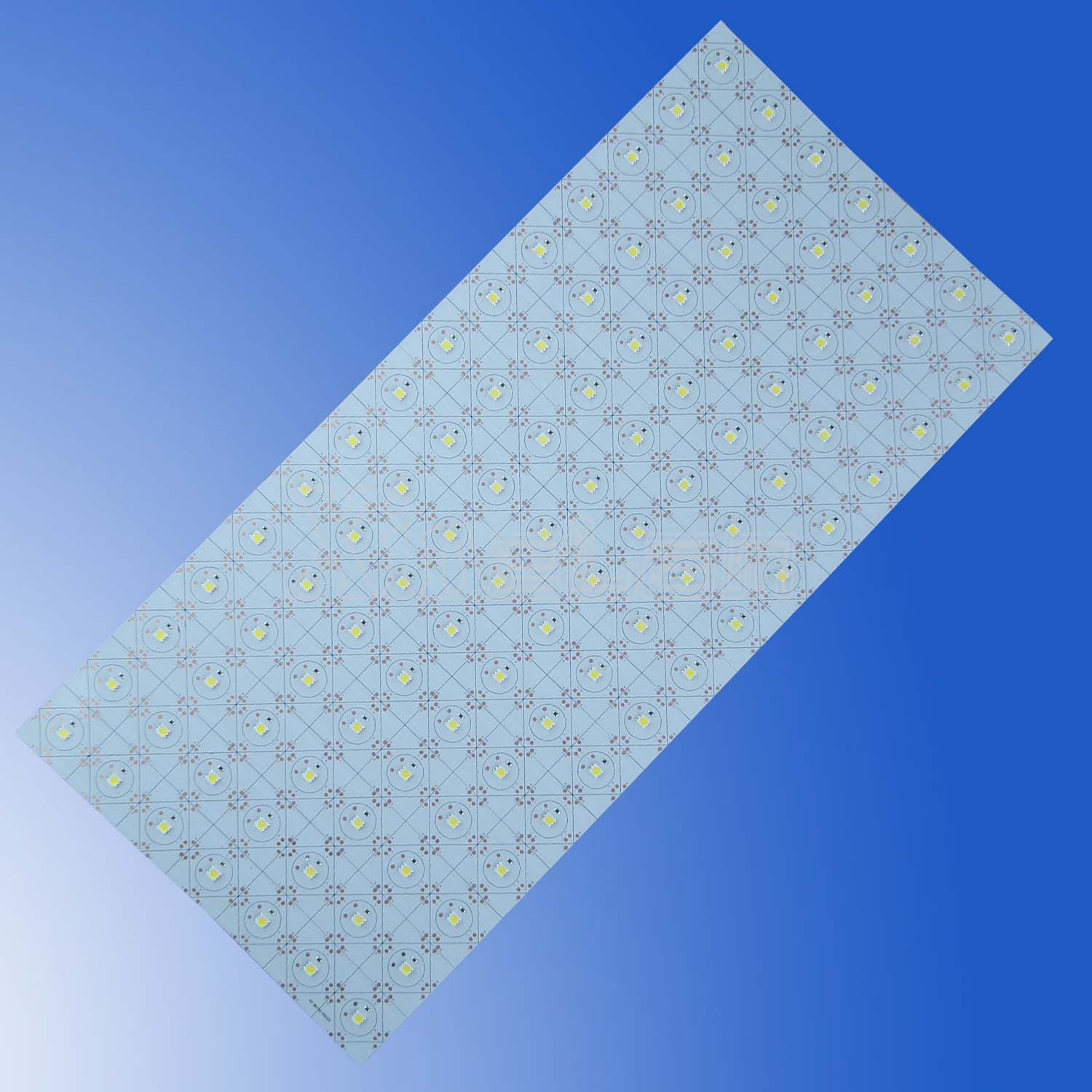

WW/NW/CW/RGB  Flexible LED Light Sheet/flexible led sheets for backlight

Product Description





Application:

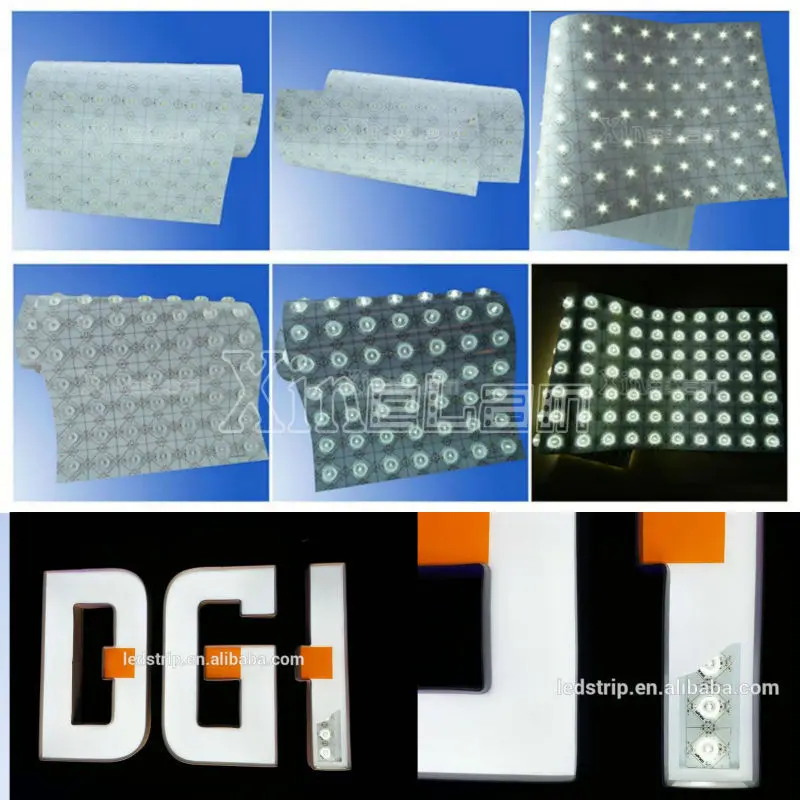

For illuminating sign cabinets,backlit graphic panels,illuminated walls,glass,ceilings or columns.



  • Light weight
  • Cuttable and bendable
  • Efficiency 104Lm/w
  • Warranty 3years
  • Life-Span >50.000hrs
  • Uniform light
  • Easy to install
  • Cost effective



Specification info:

Item:  RX-BKT28-500235 (Flexible LED Light Sheet)
Size:  500x235x1mm
LED spacing:  33.33mm
LED Qty:   105

Wattage:  32w, 0.3w/LED
Light Efficiency:  3480Lm, 33Lm/led
Operated voltage:  CV dc12volt

Operated temperature: -30°c-50°c,Max Tcp 60°c
Interconnection: Max rows 6A
Cuttable & Splice:  Each led can cut operated by professional engineering staff
Waterproof rating: Non waterproor grade

Optional colors: ww(2800-3200k),nw(3800-4250k),cw(6000-6500k)
Warranty: 3years
Lifespan: >50.000hrs( Tc<60°c  ,I=2A)


Part NumberDimensionsOptical dataComment
Net weightElectrical data
RX-BKT28-500235-12v

500x235x1mm

     55g

LED QTY105LEDTest Tcp 45 °C
InputDC12V
Power32W
Luminous flux3480Lm
Efficacy108Lm/W
RX-BKT28-500235-24V

500x235x1mm

     55g

LED QTY105LED
InputDC24V
Power32W
Luminous flux3480Lm
Efficacy108Lm/W
RX-BKT28T-500235-24V

500x235x5.8mm

     135g

LED QTY105LED
InputDC24V
Power32W
Luminous flux3120Lm
Efficacy98Lm/W










Packaging & Shipping

500x230mm weight 80g/pcs (N.W)

Export packing

Delivery by express DHL,UPS,FEDEX or boat




Our Services

>Small and sample orders acccepted
>OEM accepted
>Warranty 3years, replace the damage item during the guarantee period base on customer installed and powered the models properly
>Response your inquiry within 12hours

>Good after-sales service
>Fast delivery after the order confirmed >Payment Term: TT,Western Union, Paypal all ok


Company Information



Started run in 2003, dedicated to delevope green,quality Advertising backlight systems: for exterior and interior backlight or lighting application.







Main products:
1-Waterproof aluminum led panel (Custom sizes and shape)
2-Lattice LED lighting( available double sided led, low cost)
3- LED sheet light (Slim, light weight, Sizes and shape cuttable service)
4-LED Module Light





Patent and certifica

PATENT AND CERTIFICATION








HK lighting Fair:

  • 2013

  •  2014

FAQ

 Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3  years warranty to our products.









♥ if you want to know more about our products, pls feel free to contact us.

  Contact:Amy pu

     Tel:+86-760-2263 5226

     Mobile: +8618386006971 (Whatsapp/Wechat)

     Web:xinelam.com

     Skype:xinelam8
