Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD5050 LEDs ( Epistar )
  • Warranty(Years): 3
  • Input Voltage(V): 12
  • Lamp Power(W): 60
  • Lamp Luminous Flux(lm): 1620
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 75
  • Color Temperature(CCT): WW 3000-3500K,NW 4000-4500K,CW 6000-6500K
  • Working Temperature(℃): -30 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum board, LEDs,Epoxy resin,lead cable
  • IP Rating: IP67
  • Certification: CE, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: XineLam led panel rgb
  • Model Number: RX-ALF5050-33-RGB-6060 led panel rgb
  • Panel dimension: 600x600mm ( 60x60cm, 2x2ft )
  • Thickness: 3mm
  • LED QTY: 324LEDs x smd5050
  • LED Pitch: 33.33mm
  • Option dimension: 20cm to 60cm or custom-made
  • Optional Power: 6.6W ~ 60W
  • Single Color: Red, Green, Blue, Yellow
  • Patent No.:: ZL200820131053, ZL200820132702

Packaging & Delivery

Packaging Details led panel rgb: 8pcs/ctn, 63*20*65cm, 21KG
Delivery Time led panel rgb Sample: 5 days, Order 7-25 days



Product Description



Epoxy waterproof ip67 outdoor rgb LED panel light

Description: High Intensity LEDs mounted onto lightweight Aluminum Sheets. This fantastic range of products offers numerous advantages over traditional and old fashioned methods of backlighting with an amazing scope of applications.





Product Advantages



  • Innovative patent design, Patent No. ZL200820131053 ZL200820132702
  • High Efficiency 100Lm/W-white
  • Top LED Chip Epistar SMD5050 LED
  • Ultra-thin and flat, Lightweight, only 3mm thick
  • Safe and Reliable, Constant Voltage dc12V
  • Waterproof Rating IP67

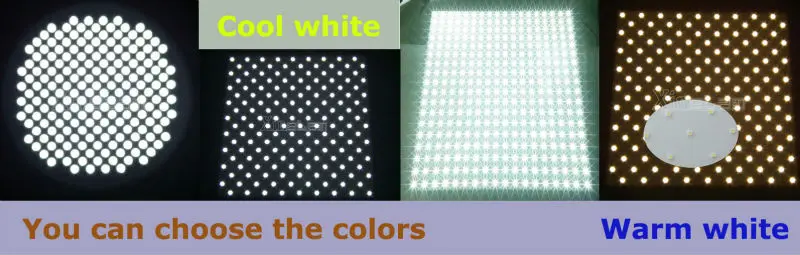

  • Color Option 6000~6500K,4000~4500K,2800~3200K,RGB,Red,Green,Blue,Yellow
  • Various Dimension 10cm to 60cm
  • Available shapes-square, rectangle, round, rounded corner, triangular
  • Beam Angle 120°
  • Color Rendering Index Ra>75
  • Long Life-Span >50000hours
  • Bespoke Any Sizes, shapes
  • Environment friendly, No hazardous materials
  • Aluminum Heat Dissipation, No Heat Sink required or needed
  • Easy installation with mounting holes or adhesive
  • Certifications CE, RoHS, FCC
  • Quality Warranty 3 years

Model

Dimension

LED QTY

Lumen

Power

DC12V

Comment

RX-ALF5050-33-RGB-2020

200x200x3mm

36LED

180Lm

Max 6.6W

LED Pitch 33.33mm

RGB

RX-ALF5050-33-RGB-3030

300x300x3mm

81LED

405Lm

Max 15W

RX-ALF5050-33-RGB-3060

300x600x3mm

162LED

810Lm

Max 30W

RX-ALF5050-33-RGB-6060

600x600x3mm

324LED

1620Lm

Max 60W



Widely Applications

  • Signs, POP displays
  • Light-boxes, Billboards, Poster boxes
  • Trade Show Lighting / signage
  • Museum Lighting
  • Ceiling Tile / Wall lighting
  • Automobile / coach / bus lighting
  • Custom under counter lighting / cabinet lighting
  • Back light for stained glass, shelves, and stone
  • X-ray (Radiograph) light-box
  • Retail store display cases

  • Optional Color and special design

  • CE,RoHS,IP67 certificate



Packaging & Shipping





Company Exhibition

June 9 ~ 12, 2015 Guangzhou International Lighting Exhibition

2013 & 2014 HK International Lighting Fair



Our Services
  1. Your inquiry will be replied within 24 hours
  2. Fast delivery time once order confirmed
  3. All products with 3 Years warranty
  4. Any sample or small order accepted
  5. Payment terms: Bank Transfer, Western Union, Paypal, Escrow
  6. OEM & ODM available
